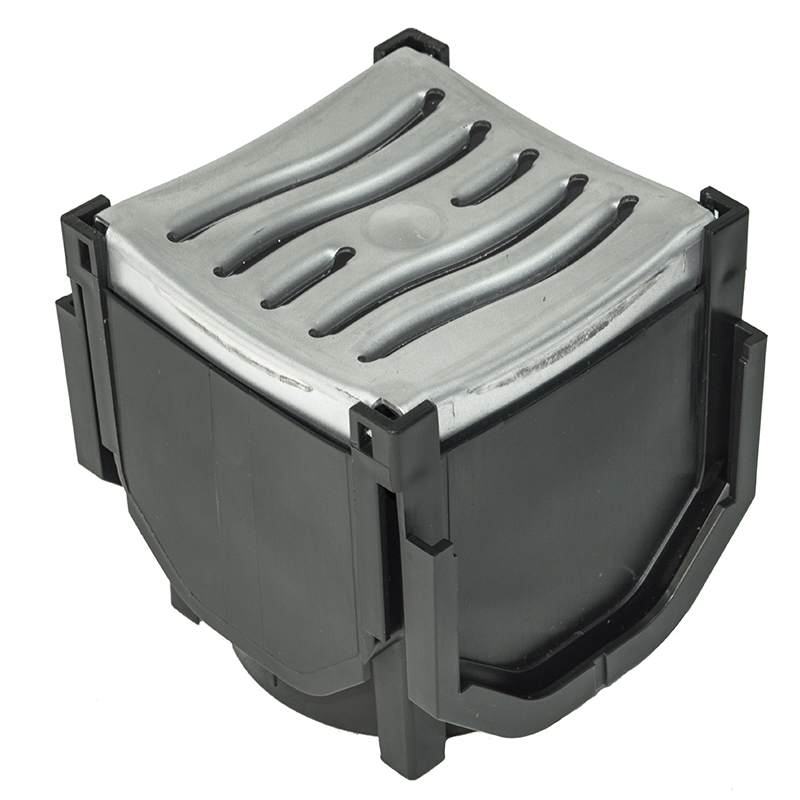

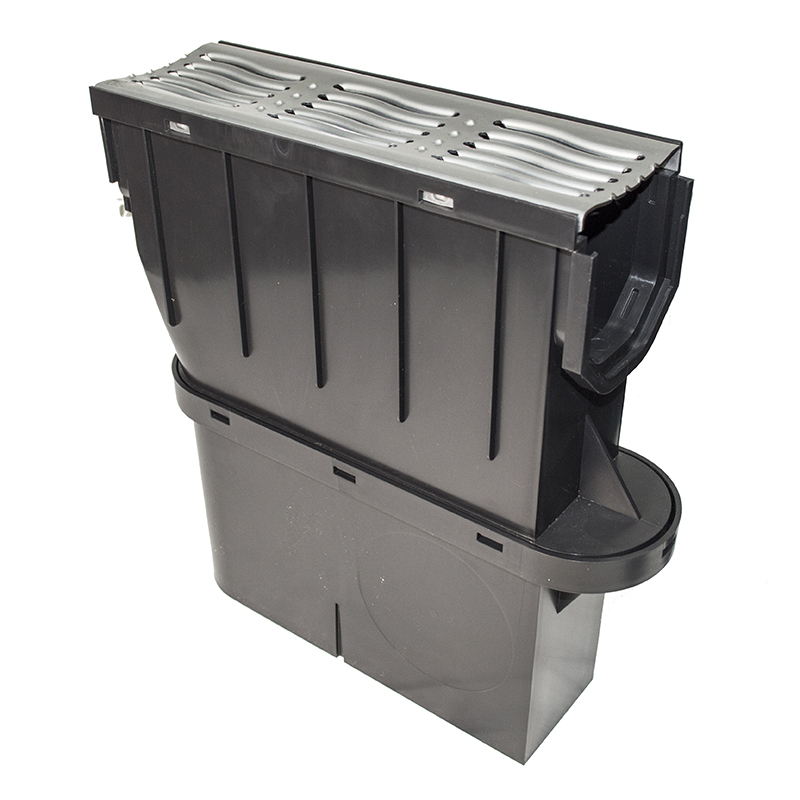

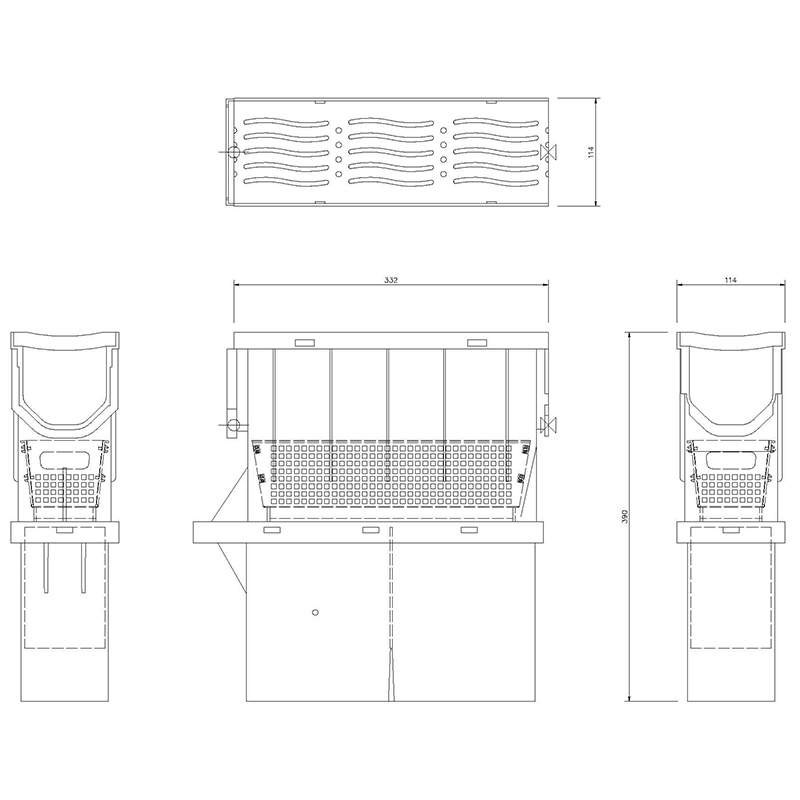

Sump Trap Unit and Basket Galvanised

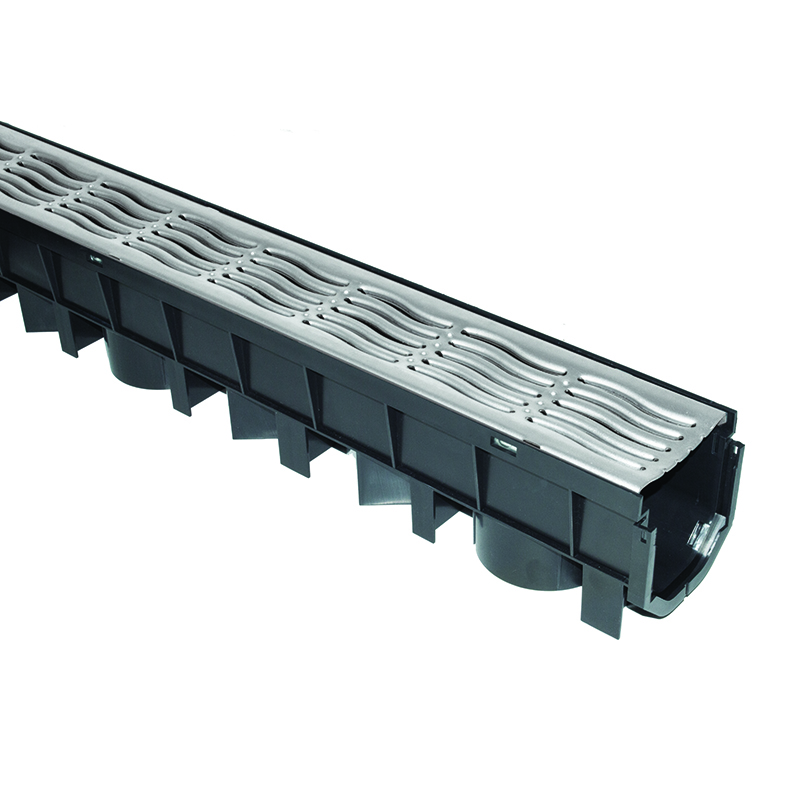

FloDrain has the benefit of a heel guard grate incorporated into the design of the product. In addition, the grate has a slip resistant finish that provides additional grip in all weather conditions and reduces the chances of slipping. Additional features include an easy to use channel-to-channel locking system that allows the user to securely click multiple channels into place for easy assembly and handling. The channel features three outlet connections underneath the base, together with additional options at each end of the channel. These five possible outlets for connection allow added flexibility for the user when installing.
Weight: 0.035 Kg
Delivery: Lead time 4-5 working days
Brand Name: Floplast
Colour: Galvanised
Material: Polypropylene
Guarantee: 10 Years Manufacturers
Delivery
The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.
Returns Policy For Brissco Online
We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.
Returning an item – Damaged
In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).
Returning an item – Risk
On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.
Returning an item – Incorrect
If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.
Delivery shortages
Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.
domestic channel drainage
How do channel drains connect to PVC drainage
You can connect domestic Channel Drainage to the Underground Drainage system in one of two ways.
There are three integral bottom outlets in each length of channel drain. If the pipe that you connecting into is at a lower level than the channel drain itself, you should use one of these bottom outlets. Simply cut out the section of base inside the circular outlet and push a piece of 110mm drainage (or the plain end of a single socket bend) straight into the outlet. For peace of mind and a completely permanent joint you can use solvent weld on the joint, although it will be sealed inside the concrete that you set the channel drainage in.

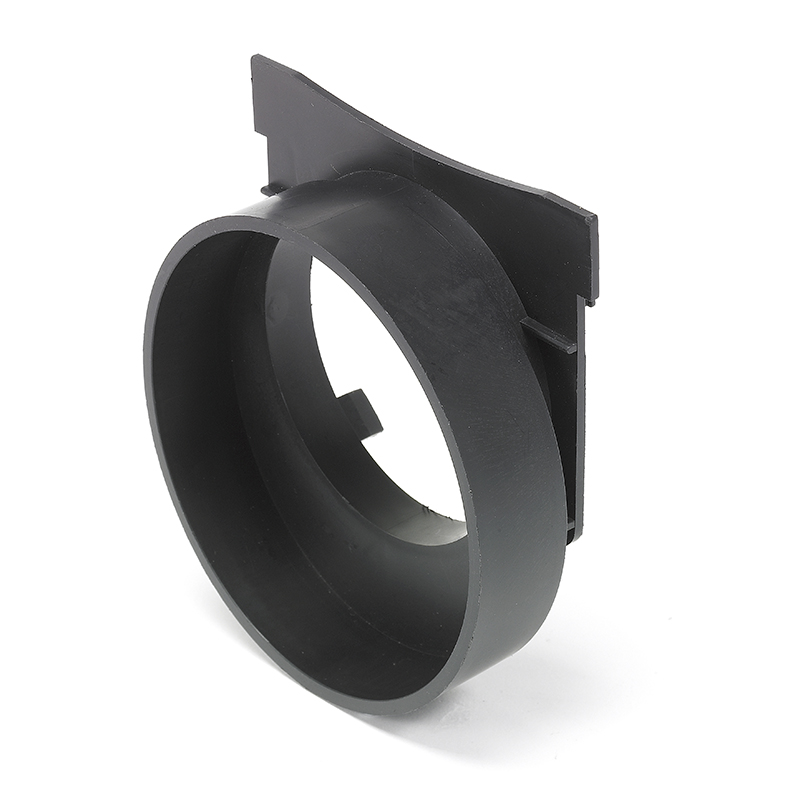

The other way to make the drain connection is to use a D712 end outlet. This is ideal if your main surface water drainage system is located at either end of the run of channel drainage, or if you are running the water away to a soakaway. The End Outlet pushes into the end of any section of the channel drainage, and a 110mm pipe or the plain end of a single socket bend can be pushed straight onto it. There is no need to solvent weld this joint as it will be sealed in the surrounding concrete.
Do channel drains have a built in slope or fall
Domestic Channel Drains do not have a built in fall, they are made level. For domestic channel drainage though you should create a fall of 1 in 200, which equates to 5mm over a 1m length of channel. Most people using channel drain around their homes tend to use it on a driveway, often in front of a garage. Our garage packs are put together with this purpose in mind, and contain 3 x 1m lengths plus an outlet and a blank end. When using channel drain in front of a standard 3m wide single garage you would need to create a fall of approximately 15mm towards the outlet, assuming the outlet is at one end.
