Manifold Black Soil

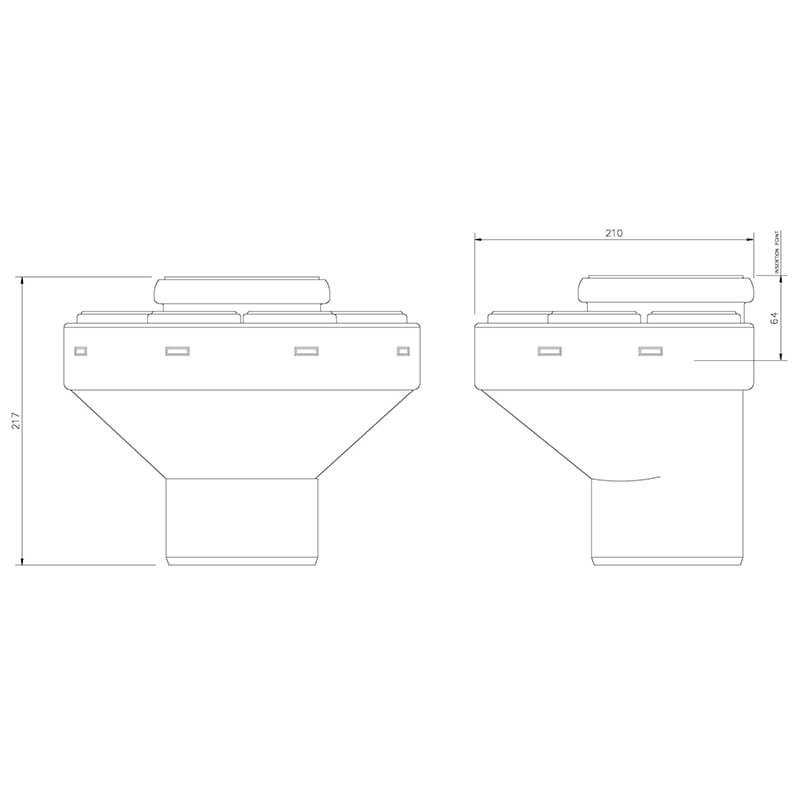

This fitting is designed to fit a soil stack that is situated in the corner of a room. The top 110mm connection is a ring seal socket that accepts a plain ended pipe or the plain end of a fitting, often a branch. The waste connections in from of the 110mm section allow 32mm, 40mm and 50mm Pipes to be connected directly into the soil stack without the need for boss pipes or boss adaptors – you simply remove the plug and push in the waste pipe. When connecting 50mm pipes the seal should be trimmed to size as indicated. In addition to its neat aesthetic appeal, the main advantages of a manifold are the prevention of any cross flow from opposite inlets and the reduction of induced syphonage within the soil system, which causes gurgling noises and drain odours as the water in the basin or bath trap is drawn out by the flow of liquid from a WC in the main soil pipe.
Weight: 1.07 Kg
Delivery: Lead time - in stock
Brand Name: Floplast
Colour: Black
Material: PVC-u
Guarantee: 10 Years Manufacturers
Delivery
The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.
Returns Policy For Brissco Online
We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.
Returning an item – Damaged
In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).
Returning an item – Risk
On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.
Returning an item – Incorrect
If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.
Delivery shortages
Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.
5d376bcf5a42a soil system installation guide
Is FloPlast 110mm compatible with Polypipe 110mm fittings?
Yes, the 110mm soil range will be compatible with the Polypipe 110mm range.
Can you use Floplast solvent cement on this pipe for a stronger connection?
Yes, solvent cement can be used on the plain ended side of this pipe. It must not be used on the socket with the rubber seal.
is this pipe suitable for cutting down in length?
Yes, the soil pipe can be cut down to the lengths required.
Can I connect a PVC soil pipe to a cast iron stack?
Many of our customers want to replace their old Cast Iron Soil Pipe with a new PVC system, but without the hassle of digging up the concrete to replace the drain connection. The answer is to cut off the cast iron at ground level, and make the connection with the specially designed D102 connector.
