Description

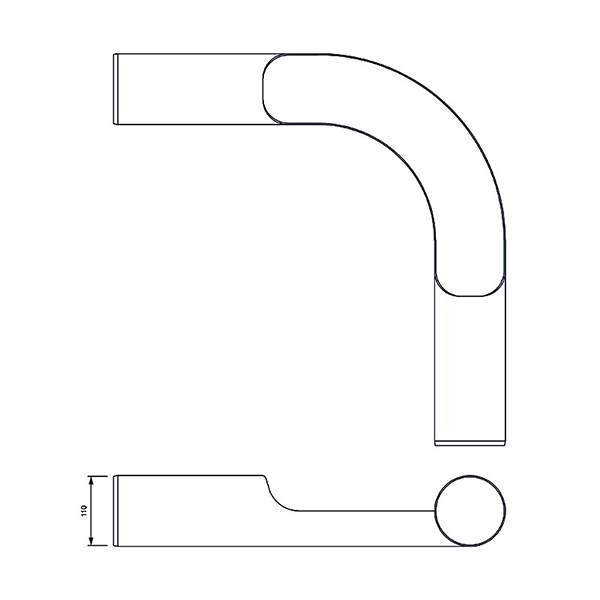

FloPlast 87½° Long Radius Bend with Channel Access - D581

The FloPlast 87½° Long Radius Bend with Channel Access - D581 is designed for use in drainage systems where a standard plastic inspection chamber is not suitable. It features a long, sweeping curve that facilitates easier inspection and cleaning when changing direction in a drainage system.

Key Features:

1. Design: Long radius bend with channel access for improved inspection and cleaning.

2. Application: Used in situations where a standard plastic inspection chamber cannot be utilized.

3. Construction: Typically installed within a concrete or brick inspection chamber or manhole.

4. Installation: The channel access pipe is embedded (benched) into a mortar or concrete mix for stability.

5. Chamfered Ends: Both ends of the channel bend pipe are chamfered for easy connection to a 110mm socketed pipe, coupling, or other ring seal fitting.

6. Function: Allows for testing, inspection, and cleaning of the drainage system.

Applications:

Drainage Systems: Used to change direction in drainage systems where a gentle, sweeping curve is required.
Inspection and Cleaning: Facilitates easier access for inspection and cleaning compared to standard bends.

The FloPlast 87½° Long Radius Bend with Channel Access - D581 is ideal for applications where a standard inspection chamber does not provide sufficient access or where a longer, sweeping curve is preferred for drainage system maintenance. It facilitates easier testing, inspection, and cleaning while maintaining structural integrity within the drainage network.

Technical Information

Delivery: Lead time 3-5 working days
Delivery: Lead time 3-5 working days
Weight: 1.30 Kg
Brand Name: FloPlast
Colour: Terracotta
Material: PVC-u
Guarantee: 10 Years Manufacturers
Weight: 1.30 Kg
Brand Name: FloPlast
Colour: Terracotta
Material: PVC-u
Guarantee: 10 Years Manufacturers

Delivery & Returns

Delivery

The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.

Returns Policy For Brissco Online

We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.

Returning an item – Damaged

In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).

Returning an item – Risk

On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.

Returning an item – Incorrect

If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.

Delivery shortages

Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

PDFs

Underground brochure.pdf

Installation guide.pdf

FAQs

How is drainage pipe measured?

Drainage Pipe is measured externally. 110mm is the external diameter of our Floplast underground drainage pipe.

What are drainage pipe made of?

Most domestic drainage pipes are now made from plastic, or PVC-U to use the proper term. PVC-U pipes are lighter and easier to handle than traditional clay drains. Clay drainage is still used on some commercial installations.One of the major advantages of plastic drainage pipes is that they are much easier to cut and join than clay pipes, this can be done using a standard fine toothed handsaw. A rasp or file should be used to chamfer the end of the pipe when it has been cut to avoid any damage to the seal when a joint is made.

How long do PVC pipes last underground?

Whilst this depends on the exact composition of the surrounding soil, any PVC underground drainage pipe manufactured to BS4660 or BS EN 1401 should last in excess of 50 years. The life of any drainage system will be prolonged by a good installation and maintenance when required – slow flows, gurgling sounds from the sink, bath or shower or foul odours in the house or garden are all symptomatic of a blocked drain and should be investigated as soon as they occur.

How do I connect my downpipes to the underground drainage?

We recommend the D96 Drain Adaptor. This rubber adapter pushes inside a standard 110mm Drainage Pipe and accepts a variety of square and round downpipes. The fins on the outside of the adaptor compress to make a watertight and gas tight seal.
