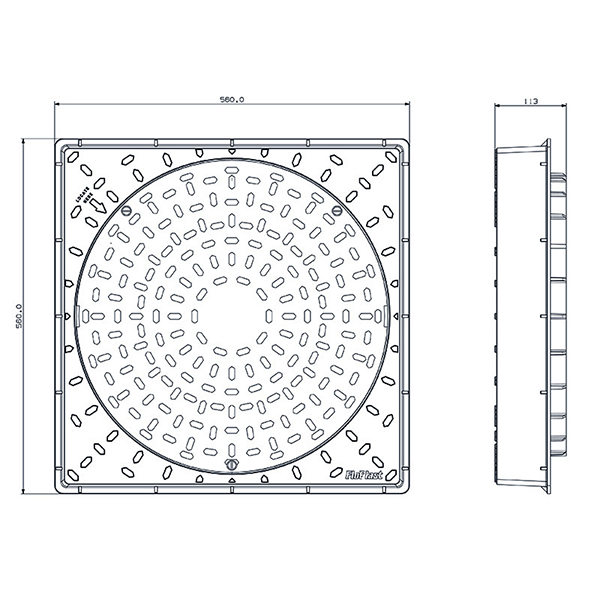

FloPlast 450mm Plastic Cover and Square Frame - D940
The FloPlast 450mm Plastic Cover and Square Frame - D940 is designed for use in inspection chambers where the depth does not exceed 1.2m. This cover and frame set is specifically suited for installation in areas with square or block paving up to 80mm thick. It features a polypropylene construction for durability and ease of installation.
Key Features:
1. Material: Made from polypropylene, ensuring durability and resistance to corrosion
2. Connection: Push-fit connection for straightforward installation
3. Sealing: Lid sealed with a ring held in position with screws
4. Design: Square frame suitable for square or block paving up to 80mm thick
5. Load Rating: 1.5 tonne load rating, providing robust strength for pedestrian and driveway areas
6. Engraved Arrows: Arrows engraved on the lid and frame facilitate alignment of screw holes during installation
Applications:
- Pedestrian Areas: Ideal for use in areas with foot traffic such as pedestrian walkways and driveways
- Driveways: Suitable for installation in driveway areas where durability and load-bearing capacity are required
The FloPlast 450mm Plastic Cover and Square Frame - D940 is a reliable choice for inspection chambers in pedestrian and driveway areas, offering durability, ease of installation, and robust strength for gravity drainage and sewerage systems.
Weight: 6.17 Kg
Delivery: Lead time 3-5 working days
Brand Name: FloPlast
Colour: Black
Material: Polypropylene
Guarantee: 10 Years Manufacturers
Delivery
The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.
Returns Policy For Brissco Online
We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.
Returning an item – Damaged
In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).
Returning an item – Risk
On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.
Returning an item – Incorrect
If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.
Delivery shortages
Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.
floplast underground brochure
How is drainage pipe measured?
Drainage Pipe is measured externally. 110mm is the external diameter of our Floplast underground drainage pipe.
What are drainage pipe made of?
Most domestic drainage pipes are now made from plastic, or PVC-U to use the proper term. PVC-U pipes are lighter and easier to handle than traditional clay drains. Clay drainage is still used on some commercial installations.One of the major advantages of plastic drainage pipes is that they are much easier to cut and join than clay pipes, this can be done using a standard fine toothed handsaw. A rasp or file should be used to chamfer the end of the pipe when it has been cut to avoid any damage to the seal when a joint is made.
How long do PVC pipes last underground?
Whilst this depends on the exact composition of the surrounding soil, any PVC underground drainage pipe manufactured to BS4660 or BS EN 1401 should last in excess of 50 years. The life of any drainage system will be prolonged by a good installation and maintenance when required – slow flows, gurgling sounds from the sink, bath or shower or foul odours in the house or garden are all symptomatic of a blocked drain and should be investigated as soon as they occur.
How do I connect my downpipes to the underground drainage?
We recommend the D96 Drain Adaptor. This rubber adapter pushes inside a standard 110mm Drainage Pipe and accepts a variety of square and round downpipes. The fins on the outside of the adaptor compress to make a watertight and gas tight seal.
