Home Categories Drainage & Plumbing Underground FloPlast 110mm Underground 45° Double Socket Junction

FloPlast 110mm Underground 45° Double Socket Junction Image

FloPlast 110mm Underground 45° Double Socket Junction

SKU: D210

Provides an efficient means of waste water drainage and foul discharge from above ground drainage systems.
Manufactured in PVC-U to give a strong and durable product, lightweight and easy to work with and suitable for high temperature waste discharge.
Fittings have an aesthetic modern look, are compact in size yet remain within the British Standard specification.
Push-Fit joint through an innovatively designed seal and snap cap system.

Description

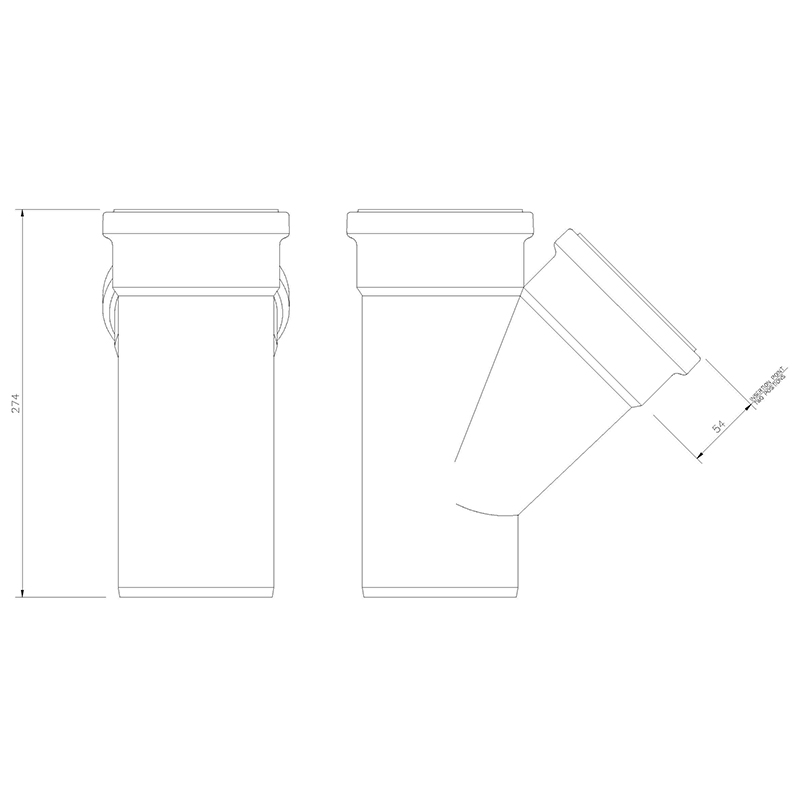

110mm Drainage 45° Junction Double Socket

A branch is used to join two pipe runs together in the drainage system. A Double socket branch comes with sockets on the outlet of the main run and the branch, and a pre-chamfered end on the inlet that allows the branch to be connected into another fitting. You should remember when designing your system using branches that all points on the drainage system should always be accessible with drain rods or water jets for future maintenance purposes.

Technical Information

Delivery: Lead time - in stock
Weight: 0.698 Kg
Brand Name: Floplast
Colour: Terracotta
Material: PVC-u
Guarantee: 10 Years Manufacturers

Delivery & Returns

Delivery

The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.

Returns Policy For Brissco Online

We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.

Returning an item – Damaged

In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).

Returning an item – Risk

On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.

Returning an item – Incorrect

If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.

Delivery shortages

Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

PDFs

Installation guide.pdf

Underground brochure.pdf

FAQs

How is drainage pipe measured?

Drainage Pipe is measured externally. 110mm is the external diameter of our Floplast underground drainage pipe.

What are drainage pipe made of?

Most domestic drainage pipes are now made from plastic, or PVC-U to use the proper term. PVC-U pipes are lighter and easier to handle than traditional clay drains. Clay drainage is still used on some commercial installations.One of the major advantages of plastic drainage pipes is that they are much easier to cut and join than clay pipes, this can be done using a standard fine toothed handsaw. A rasp or file should be used to chamfer the end of the pipe when it has been cut to avoid any damage to the seal when a joint is made.

How long do PVC pipes last underground?

Whilst this depends on the exact composition of the surrounding soil, any PVC underground drainage pipe manufactured to BS4660 or BS EN 1401 should last in excess of 50 years. The life of any drainage system will be prolonged by a good installation and maintenance when required – slow flows, gurgling sounds from the sink, bath or shower or foul odours in the house or garden are all symptomatic of a blocked drain and should be investigated as soon as they occur.

How do I connect my downpipes to the underground drainage?

We recommend the D96 Drain Adaptor. This rubber adapter pushes inside a standard 110mm Drainage Pipe and accepts a variety of square and round downpipes. The fins on the outside of the adaptor compress to make a watertight and gas tight seal.

£ 11.54 EXC VAT

Est Delivery: Lead time - in stock
