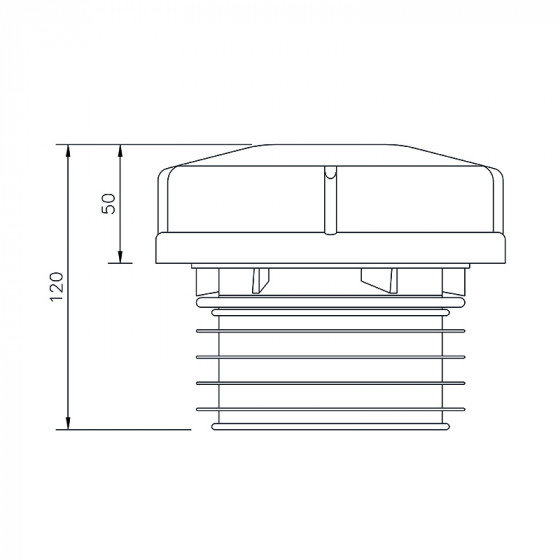

110mm Air Admittance External Valve Black
Air admittance valves are an ingeniously designed fitting that avoids the need for a soil vent pipe to terminate externally and within the strict traditional guidelines that govern position.
Traditionally, open vent pipes needed to be installed at least 900mm above any opening into the building that is within 3 metres of the vent pipe. This was to prevent foul odours from entering the living space. The beauty of air admittance valves is that they allow air to be drawn into the pipework to prevent pressure build up, but crucially no foul odours can escape from the system. This means that an air admittance valve can now be situated anywhere in the above ground drainage system provided it is at least 200mm above the highest wet entry point of the soil vent pipe (the wet entry point is the highest point of the soil pipe system that waste water can flow into). There are two types of air admittance valves internal and external. Both should always be fitted in an upright position. External air valves incorporate a push fit rubber seal connection into the soil pipe. Internal air valves are a simple push fit around the outside of the soil pipe. Both types can also be used as a secondary rodding point. Also often referred to as Durgo Valves, air admittance valves enable installers to save on both labour and material costs. They are also far safer than open vent pipes from a maintenance perspective as they remove the need to gain access above roof level.
Weight: 0.650 Kg
Delivery: Lead time - in stock
Brand Name: Floplast
Colour: Black
Material: PVC-u
Guarantee: 10 Years Manufacturers
Delivery
The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.
Returns Policy For Brissco Online
We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.
Returning an item – Damaged
In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).
Returning an item – Risk
On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.
Returning an item – Incorrect
If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.
Delivery shortages
Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.
soil system installation guide
Is FloPlast 110mm compatible with Polypipe 110mm fittings?
Yes, the 110mm soil range will be compatible with the Polypipe 110mm range.
Can you use Floplast solvent cement on this pipe for a stronger connection?
Yes, solvent cement can be used on the plain ended side of this pipe. It must not be used on the socket with the rubber seal.
is this pipe suitable for cutting down in length?
Yes, the soil pipe can be cut down to the lengths required.
Can I connect a PVC soil pipe to a cast iron stack?
Many of our customers want to replace their old Cast Iron Soil Pipe with a new PVC system, but without the hassle of digging up the concrete to replace the drain connection. The answer is to cut off the cast iron at ground level, and make the connection with the specially designed D102 connector.
