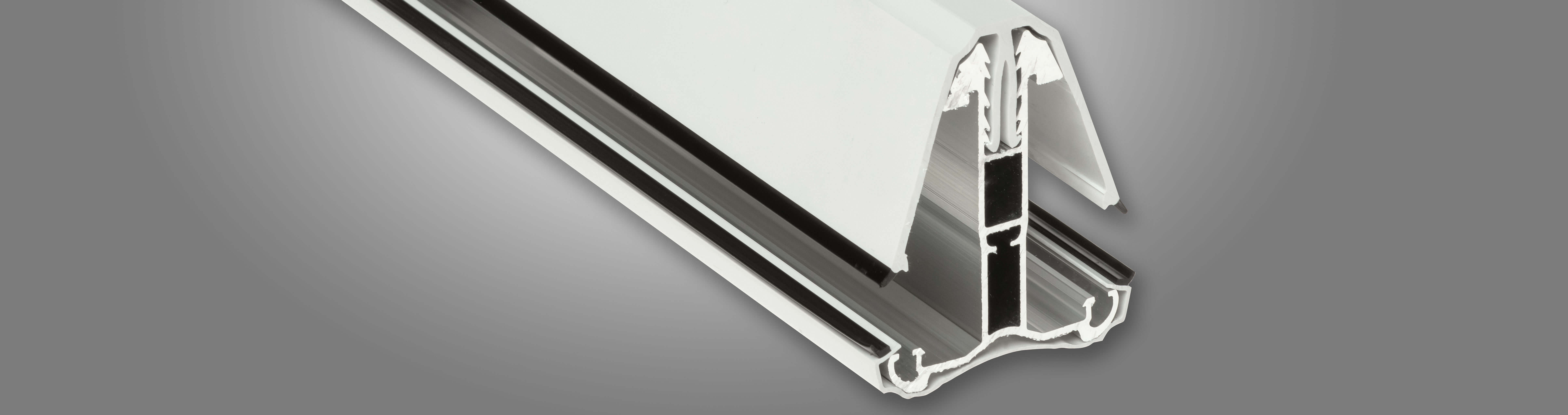

5m White Self Support Edge Glazing Bars 5m White Self Support Edge Glazing Bars 5m White Self Support Edge Glazing Bars

5m White Self Support Edge Glazing Bars

5m White Self Support Edge Glazing Bars  image
5m White Self Support Edge Glazing Bars

5m White Self Support Edge Glazing Bars

SKU:LSEB50W
£149.28 £124.40 (EXCL VAT)

  • Self-Supporting – no need for timber rafters
  • Long-Life Durability – strong aluminium ’T’ bar extrusion
  • Hardwearing and Low-Maintenance – PVCu Capping and Cladding
  • Excellent Weather Proofing – co-extruded gaskets
  • Polycarbonate or Glass – unlike others, this system can be used with glass
  • Choice of Thickness – locking points for 16, 25, 35mm panels
  • Cost Effective and Less Wastage – multiple bar lengths
  • Looks Good and Fits Well – Can be pitched from 5° upwards
call us

Available for Delivery & Collection


6m White Self Support Edge Glazing Bars

Used for glazing canopies / carports / lean to roofs. Self Supported Glazing Bars do not need to have rafter beneath them.

6m White Self Support Edge Glazing Bars used with our eaves beam and wall plate it makes an ideal choice for erecting or replacing a small lean to conservatory roof, canopy or carport. Our Self Support Glazing Bars are compatible with 16mm, 25mm or 35mm polycarbonate sheet and 24mm sealed units. Available in a range of lengths.

Loading specifications apply. Bars have limitations, please understand the maximum glazing bar projections and sheet widths before ordering product. Please contact us for details concerning the safe installation of a self supported roof. This product is only really suited to an experienced DIY’er or tradesman.

MAXIMUM PROJECTION OF SELF SUPPORT GLAZING BAR UNSUPPORTED IS 4M. MAXIMUM POLYCARBONATE WIDTH IS 1000MM. MAXIMUM SEALED UNIT WIDTH IS 800MM. PLEASE NOTE THE SPANS AND MAXIMUM PERMITTED SHEET WIDTHS CHANGE DEPENDANT UPON PITCH AND PROJECTION. PLEASE CONTACT US FOR MORE INFORMATION.

MINIMUM PITCH IS 5 DEGREES – ALTHOUGH WE RECOMMEND A MINIMUM PITCH OF 10 DEGREES

Size: H93mm x L6000mm x W62mm
Delivery: Lead time 3-5 working days
Brand Name: Molan
Colour: White
Material: PVC-u
Guarantee: 10 Years Manufacturers
