Home Categories Roofing & Canopy Glazing Bars 3.5m Brown Self Support Intermediate Glazing Bars

3.5m Brown Self Support Intermediate Glazing Bars Image

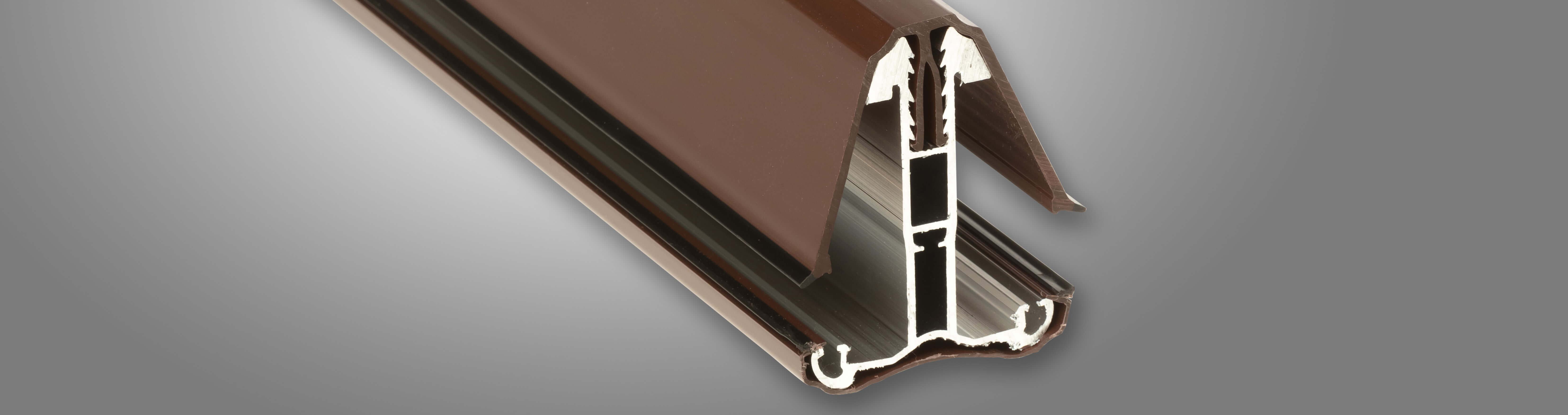

3.5m Brown Self Support Intermediate Glazing Bars

SKU: LSBIB35

Self-Supporting – no need for timber rafters
Long-Life Durability – strong aluminium ’T’ bar extrusion
Hardwearing and Low-Maintenance – PVCu Capping and Cladding
Excellent Weather Proofing – co-extruded gaskets
Polycarbonate or Glass – unlike others, this system can be used with glass
Choice of Thickness – locking points for 16, 25, 35mm panels
Cost Effective and Less Wastage – multiple bar lengths
Looks Good and Fits Well – Can be pitched from 5° upwards

Description

3.5m Brown Self Support Intermediate Glazing Bars

Used for glazing canopies / carports / lean to roofs. Self Supported Glazing Bars do not need to have rafter beneath them.

3.5m Brown Self Support Intermediate Glazing Bars used with our eaves beam and wall plate it makes an ideal choice for erecting or replacing a small lean to conservatory roof, canopy or carport. Our Self Support Glazing Bars are compatible with 16mm, 25mm or 35mm polycarbonate sheet and 24mm sealed units. Available in a range of lengths.

Loading specifications apply. Bars have limitations, please understand the maximum glazing bar projections and sheet widths before ordering product. Please contact us for details concerning the safe installation of a self supported roof. This product is only really suited to an experienced DIY’er or tradesman.

MAXIMUM PROJECTION OF SELF SUPPORT GLAZING BAR UNSUPPORTED IS 4M. MAXIMUM POLYCARBONATE WIDTH IS 1000MM. MAXIMUM SEALED UNIT WIDTH IS 800MM. PLEASE NOTE THE SPANS AND MAXIMUM PERMITTED SHEET WIDTHS CHANGE DEPENDANT UPON PITCH AND PROJECTION. PLEASE CONTACT US FOR MORE INFORMATION.

MINIMUM PITCH IS 5 DEGREES – ALTHOUGH WE RECOMMEND A MINIMUM PITCH OF 10 DEGREES

Technical Information

Size: H93mm x L3500mm x W63mm
Delivery: Lead time 3-5 working days
Brand Name: Molan
Colour: Brown

Delivery & Returns

Delivery

The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.

Returns Policy For Brissco Online

We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.

Returning an item – Damaged

In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).

Returning an item – Risk

On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.

Returning an item – Incorrect

If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.

Delivery shortages

Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

PDFs

Suppot information.pdf
